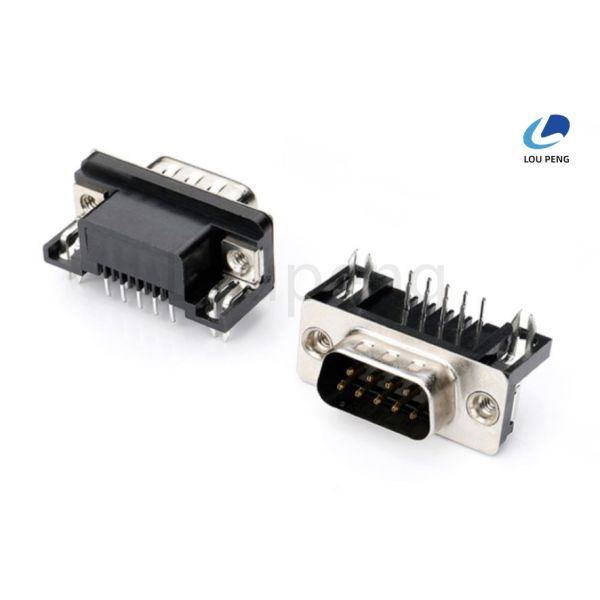

D-SUB Connector 9pin male 8.08, half gold vinyl, riveted

Product Categories

Loupeng Electronics Co., Ltd

Contact Now

Brand Name : LP

Model Number : LP-DB006

Certification : ISO 9001:2000

Place of Origin : China

MOQ : 1000PCS

Price : 0.03

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100000PCS

Delivery Time : 7~10 days

Packaging Details : Tray / Tube

Color : Black

Contact Now

一,MATERIAL:

1. Insulator: PBT+30%Glass Fiber (UL94V-0)

2.Contact: Brass

3.Contact Plated: Gold Flash over Tin Or Glod Plated Or Tin Plated

4. Shell: Steel, Nickel Plated

二,SPECIFICATION:

1.Current Rating: 5 AMPS

2. Insulation Resistance: 1000MSMIN. At 500vDC

3.Dielectric Strength: 500V for One minute

4.Operation Temperature: -55ºC ~ +105ºC

D-SUB Connector 9pin male 8.08, half gold vinyl, riveted
