MiniStak High Density High Speed 0.5mm Board-to-Board Connector H=5.0mm

Product Categories

Loupeng Electronics Co., Ltd

Contact Now

Brand Name : LP

Model Number : LP-BTB001

Certification : ISO 9001:2000

Place of Origin : China

MOQ : 1000PCS

Price : 0.06

Payment Terms : T/T, , L/C

Supply Ability : 100000PCS

Delivery Time : 7~10 days

Packaging Details : Reel / Tube / Tray

Color : Black

Contact Now

NOTES:

1.HOUSING MATERIAL: LCP UL94V-0

2.TERMINAL AND POST MATERIAL: COPPER ALLOY, GOLD PLATING OVER NICKEL.

SPECIFICATIONS:

1. ELECTRICAL CHARACTERISTICS:

1-1. RATING CURRENT: POWER PIN 3A/CONTACTO,

SIGNAL PIN 0.3A/CONTACT(MAX.5A AT TOTAL CONTACT).

1-2.VOLTAGE RATING: 50V

1-3. CONTACT RESISTANCE: POWER PIN 20mΩ MAX,SIGNAL PIN 50mΩ MAX.

1-4. DIELECTRIC WITHSTANDING VOLTAGE: 250V AC FOR ONE MINUTE.

1-5. INSULATION RESISTANCE: 1000MΩ MIN.

2.MECHANICAL CHARACTERISTICS:

2-1. INSERTION FORCE: 1.5N/PIN MAX(40N MAX TOTAL)

2-2.WITHDRAWAL FORCE: 0.15N/PIN MIN

3.DURABILITY: 30 CYCLES(MIN)

4.AMBIENT TEMPERATURE RANGE: -55ºC ~ +125ºC

MiniStak High Density High Speed 0.5mm Board-to-Board Connector H=5.0mm

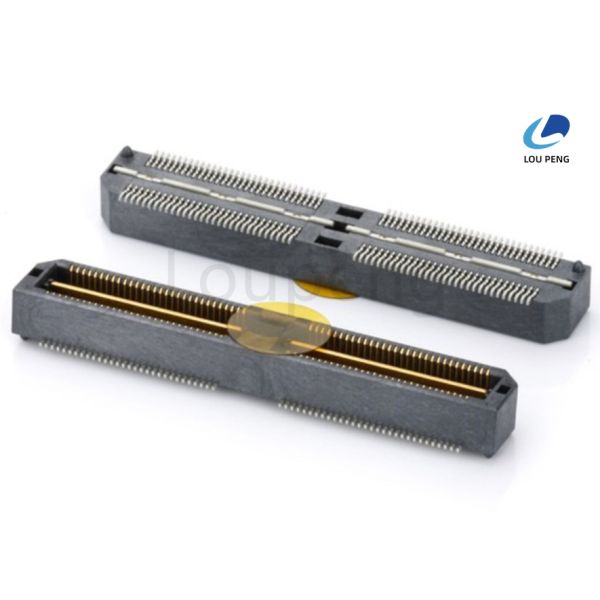

MiniStak High Density High Speed 0.5mm Board-to-Board Connector H=5.0mm Images
